Size Chart (Rider Height)

Model	XS	S	M	L	XL
Spartan Troy Dixon Wilson Atlas	-	152 - 171 cm	169 - 180 cm	178 - 187 cm	185 - 193 cm
Spartan Troy Dixon Wilson Atlas	-	5' - 5'7"	5'6.5" - 5'11"	5'10" - 6'1.5"	6'1" - 6'4"
Newton	147 - 160 cm	157 - 171 cm	169 - 180 cm	178 - 187 cm	185 - 193 cm
Newton	4'10" - 5'3"	5'2" - 5'7"	5'6.5" - 5'11"	5'10" - 6'1.5"	6'1" - 6'4"

Bike Geometry

Spartan
Troy
Dixon
Wilson
Atlas
Newton

Spartan

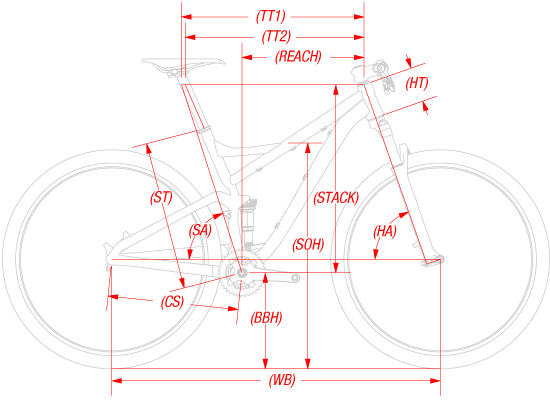

*All measurements are in milimeters and degrees TT1 - Geometry calculated using a seatpost with 25mm setback
L O	Size	ST	SA	HA	TT1	TT2	REACH		CS	WB	BBH	SOH	STACK	HT
	S	410	72.4	65.8	587	560	395		432	1140	337	727	607	105
	M	445	72.4	65.8	607	580	413		432	1161	337	734	612	115
	L	475	72.4	65.8	627	601	432		432	1182	337	749	617	125
	XL	510	72.4	65.8	647	621	449		432	1203	337	764	626	135
H I	Size	ST	SA	HA	TT1	TT2	REACH		CS	WB	BBH	SOH	STACK	HT
	S	410	73.0	66.4	585	558	401		430	1138	344	730	603	105
	M	445	73.0	66.4	605	578	419		430	1159	344	737	608	115
	L	475	73.0	66.4	625	599	438		430	1180	344	752	613	125
	XL	510	73.0	66.4	645	619	455		430	1201	344	766	622	135

Troy

*All measurements are in milimeters and degrees TT1 - Geometry calculated using a seatpost with 25mm setback
L O	Size	ST	SA	HA	TT1	TT2	REACH		CS	WB	BBH	SOH	STACK	HT
	S	410	72.4	67	587	559	397		430	1122	337	727	600	110
	M	445	72.4	67	607	579	415		430	1142	337	727	605	115
	L	475	72.4	67	627	599	435		430	1162	337	752	605	115
	XL	510	72.4	67	647	619	451		430	1184	337	770	619	130
H I	Size	ST	SA	HA	TT1	TT2	REACH		CS	WB	BBH	SOH	STACK	HT
	S	410	73.0	67.5	585	557	403		428	1120	344	733	596	110
	M	445	73.0	67.5	605	577	421		428	1140	344	733	601	115
	L	475	73.0	67.5	625	597	441		428	1160	344	758	601	115
	XL	510	73.0	67.5	645	617	547		428	1182	344	776	615	130

Dixon

*All measurements are in milimeters and degrees
L O	Size	ST	SA	HA	TT	REACH		CS	WB	BBH	SOH	STACK	HT
	S	420	71.8	66.2	564	376		426	1102	354	734	571	120
	M	460	71.8	66.2	589	398		426	1128	354	760	579	130
	L	495	71.8	66.2	614	419		426	1155	354	780	593	145
	XL	535	71.8	66.2	639	440		426	1181	354	810	607	160
H I	Size	ST	SA	HA	TT	REACH		CS	WB	BBH	SOH	STACK	HT
	S	420	72.3	66.7	562	381		424	1100	360	740	568	120
	M	460	72.3	66.7	587	409		424	1126	360	766	576	130
	L	495	72.3	66.7	612	424		424	1153	360	786	590	145
	XL	535	72.3	66.7	637	445		424	1179	360	816	604	160

Wilson

*All measurements are in milimeters and degrees
L O	Size	ST	SA	HA	TT1	TT2	REACH		CS	WB	BBH	SOH	STACK	HT
	S	406	72	64	590	575	382		430	1156	355	740	593	120
	M	432	72	64	610	595	402		430	1176	355	740	593	120
	L	445	72	64	622	607	432		430	1203	355	740	593	120
	XL	457	72	64	640	625	447		430	1221	355	740	593	120
H I	Size	ST	SA	HA	TT1	TT2	REACH		CS	WB	BBH	SOH	STACK	HT
	S	406	72.7	64.7	588	573	389		427	1152	365	750	587	120
	M	432	72.7	64.7	608	593	409		427	1172	365	750	587	120
	L	445	72.7	64.7	620	605	439		427	1199	365	750	587	120
	XL	457	72.7	64.7	638	623	454		427	1217	365	750	587	120

Atlas

*All measurements are in milimeters and degrees
L O	Size	ST	SA	HA	TT1	TT2	REACH		CS	WB	BBH	SOH	STACK	HT
	S	460	71.2	69.6	584	571	371		430	1072	337	727	621	110
	M	490	71.2	69.6	604	592	389		430	1085	337	741	627	115
	L	520	71.2	69.6	624	612	411		430	1112	337	757	626	115
	XL	550	71.2	69.6	644	633	426		430	1132	337	768	640	130
H I	Size	ST	SA	HA	TT1	TT2	REACH		CS	WB	BBH	SOH	STACK	HT
	S	460	71.7	70.1	581	568	377		428	1070	343	733	617	110
	M	490	71.7	70.1	602	590	394		428	1084	343	747	623	115
	L	520	71.7	70.1	622	610	417		428	1111	343	763	622	115
	XL	550	71.7	70.1	642	631	432		428	1131	343	774	633	130

Newton

*All measurements are in milimeters and degrees
Size	ST	SA	HA	TT	REACH		CS	WB	BBH	SOH	STACK	HT
XS	350	75.0	70.0	535	391		435	1038	275	635	547	110
S	410	75.0	70.5	540	396		435	1039	275	681	549	110
M	460	74.0	71.0	555	395		435	1040	275	720	569	130
L	510	73.5	71.0	565	391		435	1046	275	763	598	160
XL	550	73.0	71.0	585	397		435	1062	275	796	626	190
