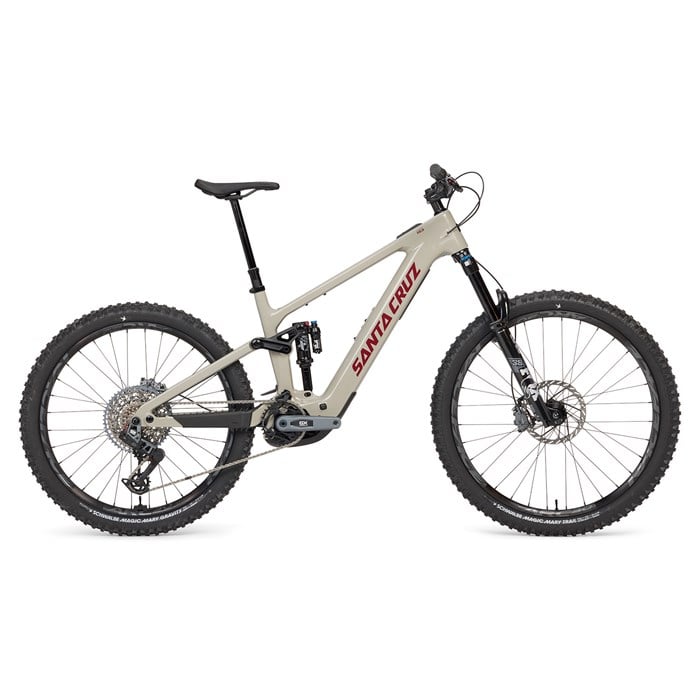

Clear your calendar, forward all calls to voicemail, and turn those Out Of Office alerts on: there's a new Santa Cruz in town. The Santa Cruz Vala 1 C GX AXS E-Mountain Bike is a full power trail bike with serious attitude. It boasts a mixed wheel design, 64° head tube angle, and 150mm of rear travel, powered by the latest Bosch Performance Line CX drive unit and a 600Wh battery optimized for performance and weight. The Vala stands out in the Santa Cruz lineup for its four bar suspension, a design carefully engineered to deliver Santa Cruz's best kinematics and handling while playing nice with the motor layout. If you ever wished for an e-Bronson, this is the bike you've been waiting for. This build comes equipped with the latest Fox Performance Elite suspension, hard stopping SRAM Maven Bronze brakes, and the rock solid SRAM GX AXS Transmission drivetrain. Outstanding!
Carbon C Frame – Manufactured in their exclusive factory, Santa Cruz controls how their designs are produced, ensuring the highest quality control. Their production C series carbon frames are strong as hell, with optimized layups and the latest techniques.
Travel – 160mm Front / 150mm Rear
Wheel Size – Mixed Wheel (29" Front / 27.5" Rear)
Bosch Performance Line CX Drive Unit – The next generation Bosch Performance Line CX motor is quieter, lighter, and smaller than ever. More compact but no less powerful, it comes with a maximum torque of 85Nm. Choose between 4 standard modes and customize your ride in the Bosch Flow App.
Top Tube Integrated LED Display – Lights display battery charge and three ride modes.
Size | S | M | L | XL | XXL |
---|---|---|---|---|---|
Rider Height | 5'1" - 5'5" | 5''5" - 5'9" | 5'9" - 6'1" | 6'1" - 6'4" | 6'4" - 6'7" |
Reach (mm) | 432 | 456 | 477 | 497 | 522 |
Stack (mm) | 626 | 636 | 644 | 657 | 671 |
Effective Top Tube (mm) | 574 | 602 | 623 | 646 | 675 |
Seat Tube (mm) | 380 | 400 | 420 | 460 | 500 |
Head Tube Angle (°) | 63.9 | 63.9 | 63.9 | 63.9 | 63.9 |
Seat Tube Angle (°) | 77.2 | 77.2 | 77.2 | 77.2 | 77.2 |
Chainstay Length (mm) | 440 | 441 | 444 | 447 | 451 |
Bottom Bracket Height (mm) | 340 | 340 | 340 | 340 | 340 |
Bottom Bracket Drop (mm) | 32 | 32 | 32 | 32 | 32 |
Head Tube Length (mm) | 110 | 120 | 130 | 145 | 160 |
Wheelbase (mm) | 1211 | 1242 | 1269 | 1298 | 1334 |
Standover Height (mm) | 736 | 730 | 730 | 730 | 723 |
Wheel Size | Mixed Wheel | Mixed Wheel | Mixed Wheel | Mixed Wheel | Mixed Wheel |
