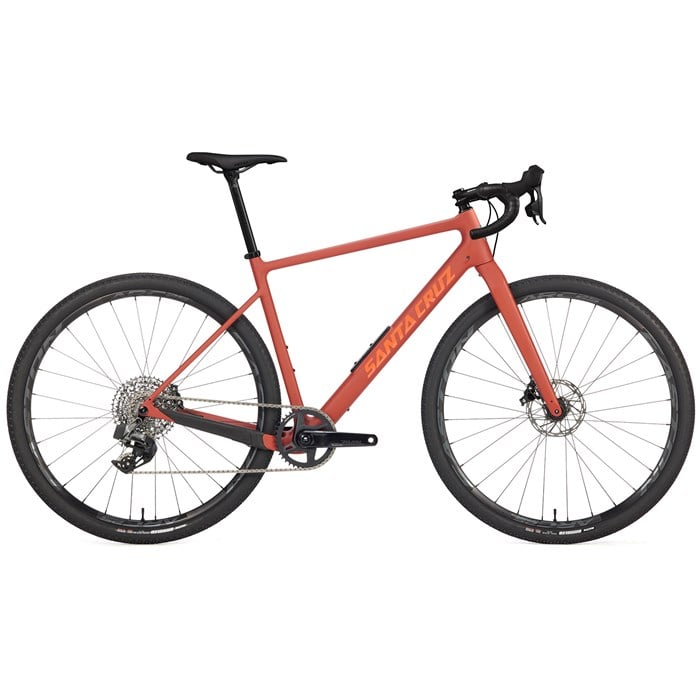

Santa Cruz Stigmata CC Rival AXS 1x 700c Complete Bike 2024
Model Info
MEMBERSHIP
Earn up to 10% back in rewards. Learn more. Join Free.
Product Info
Riding the Santa Cruz Bicycles Stigmata CC Force AXS 1x 700c Complete Bike is like having a mischievous shape-shifter in your arsenal – a two-wheeled jack-of-all-trade that blends gracefully into every cycling realm. The Glovebox and three water bottle capacity streamline packing for longer rides and the universal hanger simplifies your mountain bike and gravel adventures toolkits. So go ahead, let the wide 1x12 SRAM Rival eTap AXS drivetrain propel you up every climb and push ahead of those ancient 1x11 racers with ease.
Product Details
Frame and Fork
Carbon CC Frame and Fork – Santa Cruz's highest grade of carbon makes for a bike that is incredibly lightweight, strong, and comfortable. With knowledge gained from years of mountain bike innovation, this frameset is stiff yet has great offroad feel.
Three Water Bottle Cage Mounts – With two inside the front triangle and one on the underside of the downtube, you'll never want for storage.
50mm Tire Clearance
Threaded Bottom Bracket
12mm Thru-Axle
Suspension Corrected Geometry for Longer Axle-Crown of 40mm Gravel Suspension
Drivetrain
SRAM Rival eTap AXS – Experience a better bike ride. SRAM Rival eTap AXS features the technology modern riders want—intuitive wireless shifting, innovative gearing, integrated power measurement, AXS connectivity, and refined hydraulic disc brakes. It’s low on complexity, but rich with features.
Brakes
SRAM Rival AXS – Wireless shifting and the best hydraulic disc braking anywhere, plus revolutionary eTap shift logic. What more could you want? The hood shape is optimized to fit hands of all sizes, for comfortable and controlled braking from any position. AXS technology means personalization is in your hands.
Avid Centerline Centerlock Rotors | 160mm
Wheelset
Maxxis Rambler EXO Tires – With numerous race wins under its belt and untold miles of backroad adventures, the Rambler is Maxxis's most popular gravel offering. Tightly-packed center knobs are ramped for rolling efficiency on hardpack roads and asphalt. The cornering knobs are spaced farther apart for control in variable conditions.
Easton ARC Offset 25 with DT Swiss 370 Hubs
Additional Features
Glovebox – Stash snacks and tools in the bike, not on the body or in rattle-y bags.
Price and Spec Subject to Change
27.5 Dropper Post Compatible (1x Only)
Universal Derailleur Hangar
Specs
- Gender: Unisex
- Recommended Use: Cyclocross, Gravel
-
Biking Type:
Gravel/Adventure
More
Biking Type
Gravel/Adventure Gravel/Adventure bikes are versatile machines designed for exploring mixed terrain, combining elements of road and mountain bike frames for comfort and stability. They offer traction and stability on various surfaces. Whether on gravel roads, light trails, or city streets, these bikes provide a perfect balance between comfort, performance, and versatility.
- Bike Style: Cyclocross, Gravel, XC
- Wheel Size: 700c
- Gearing: 1 x 12
-
Frame Material:
Carbon
More
Frame Material
Carbon Carbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.
- Fork Material: Carbon
-
Shifters:
SRAM Rival eTap AXS
More
Shifters
SRAM Rival eTap AXS Compatible with AXS drivetrains, this wireless shifter has an ergonomic "click and fire" two button design, and ergonomics that'll have your thumbs feeling great. -
Rear Derailleur:
SRAM Rival XPLR eTap AXS, 12-Speed
More
Rear Derailleur
SRAM Rival XPLR eTap AXS, 12-Speed The Rival XPLR eTap AXS rear derailleur is a dedicated 1x-specific unit designed for use with the XPLR 10-44 cassette. It makes for an uncluttered drivetrain that takes on pavement and singletrack with equal aplomb. Wireless and proven eTap shift logic, AXS connectivity and advanced chain management mean this derailleur does exactly what you want when you need it. -
Crankset:
SRAM Rival 1 Wide, 40t
More
Crankset
SRAM Rival 1 Wide, 40t Elegant and secure direct-mount X-SYNC chainrings from the company that originated the 1x drivetrain for the ultimate in consistent chain control over the long haul.
FEATURES- Direct mount chainrings in 38T through 46T
- DUB bottom bracket adds durability and simplicity
- Wide chainline crankset to fit the biggest gravel tires
- Longer DUB crank spindle accommodates both Road and MTB width frame bottom bracket standards for unmatched cross-compatibility across brands
- Compatible with 135, 142 and BOOST rear spacing
- Bottom Bracket: RAM DUB 68mm Road Wide
- Pedals: Not Included
-
Cassette:
SRAM XPLR XG-1251, 10-44t
More
Cassette
SRAM XPLR XG-1251, 10-44t Make that daily ride from your front door a little spicier with some dirt. The 440% range of the XPLR XG-1251 cassette provides smooth gear progression when you’re sweating up gravel climbs, and tight jumps on the high end for when it’s time to drill it on asphalt. Shift features on each cog are optimized for electronic shifting, so you’ll get fast, smooth and precise shifts every time.
FEATURES- X-Range gearing gives you more range and a smoother gear progression, so you’re always in the right gear
- 440% range gives the coverage 1x gravel riders want
- For use with XPLR 1x rear derailleurs
- Compatible with Flattop chains
- Compatible with XDR driver body
- MINI CLUSTER technology for light weight and durability
-
Chain:
SRAM Rival, 12-Speed
More
Chain
SRAM Rival, 12-Speed The Flattop technology of the SRAM Rival chain creates a lighter, quieter, stronger chain that’s compatible with 12-speed 1x and 2x eTap AXS drivetrains. Ride far, long and fast—this chain can go the distance.
FEATURES- Flattop technology allows for a narrower chain with quieter operation and increased strength and durability
- Use for both 1x and 2x eTap AXS
- Includes Flattop PowerLock
-
Brake Levers:
SRAM Rival
More
Brake Levers
SRAM Rival Wireless shifting and the best hydraulic disc braking anywhere, plus revolutionary eTap shift logic. What more could you want? While SRAM could have stopped there, they went further and optimized the hood shape to fit hands of all sizes, for comfortable and controlled braking from any position. AXS technology means personalization is in your hands. - Brake Calipers: SRAM Rival AXS
- Rotors: SRAM Paceline 160mm Centerlock
- Headset: Cane Creek 40 IS Integrated Headset
- Stem: Zipp Service Course Stem 70mm
- Saddle: WTB Silverado Medium, CroMo
-
Seatpost:
Easton EC70
More
Seatpost
Easton EC70 The EC70 Seatpost takes Easton's superlight unidirectional carbon and applies their patent pending ISA technology - Independent Saddle Adjustment - which allows for completely independent fore-aft adjustment and saddle adjustment. With the 2 pitch adjustment bolts, the saddle angle gets locked into place as if you were adjusting limit screws, and unlike single bolt designs, you get adjustability and security. - Hubs: DT Swiss 370
- Rims: Easton ARC Offset 25 700C
- Tires: Maxxis Rambler | 700x45c
- Warranty: Lifetime Warranty (Frame Only)
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Rider Height | 5'3" - 5'6" | 5''6" - 5'9" | 5'9" - 6'0" | 6'0" - 6'2" | 6'2" - 6'6" |
| Reach (mm) | 390 | 405 | 420 | 435 | 450 |
| Stack (mm) | 564 | 576 | 600 | 612 | 631 |
| Effective Top Tube (mm) | 552 | 570 | 595 | 610 | 631 |
| Seat Tube (mm) | 455 | 485 | 515 | 545 | 575 |
| Head Tube Angle (°) | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| Seat Tube Angle (°) | 74 | 74 | 74 | 74 | 74 |
| Chainstay Length (mm) | 430 | 430 | 430 | 430 | 430 |
| Bottom Bracket Height (mm) | 278.5 | 278.5 | 278.5 | 278.5 | 278.5 |
| Bottom Bracket Drop (mm) | 78 | 76 | 76 | 74 | 74 |
| Head Tube Length (mm) | 105 | 120 | 145 | 160 | 180 |
| Wheelbase (mm) | 1043 | 1063 | 1087 | 1108 | 1130 |
| Standover Height (mm) | 728 | 753 | 778 | 804 | 830 |
